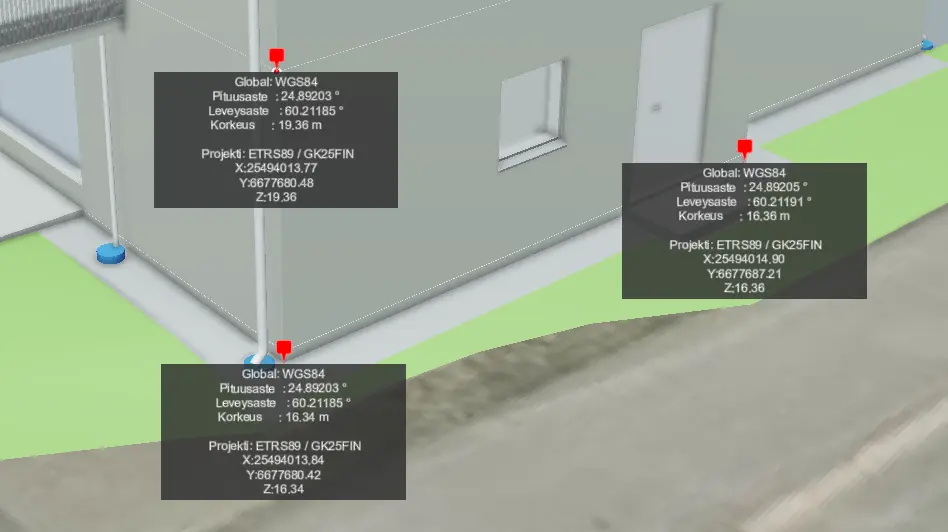

Point
Point measurement measures points and their coordinates. Coordinates are displayed in both global WGS84 coordinates and local project coordinate system coordinates. You can measure multiple points just by clicking multiple locations.

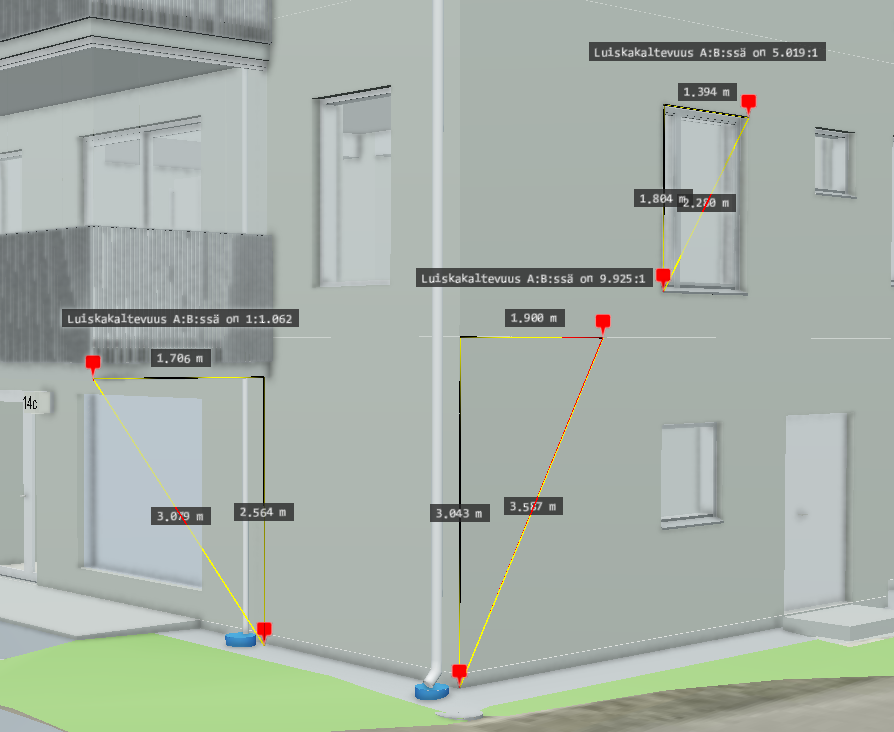

Distance
Distance measurement measures distances between two points:
- 3D Distance
- 2D Distance in XY plane
- Height difference
- Slope in standard A:B ratio

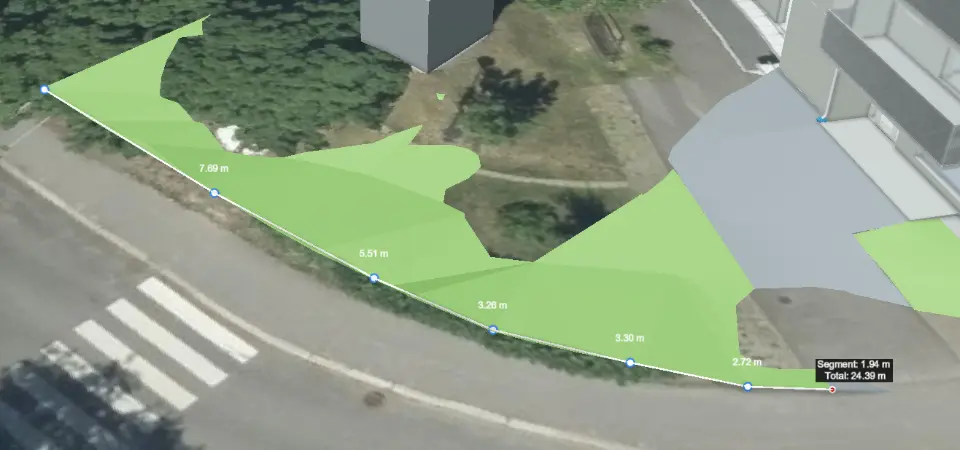

Length
Length distance measures total length of a polyline by clicking polyline points. Use this tool to measure for example length of fences or other edges. It also shows each segment length next to endpoint of each segment.

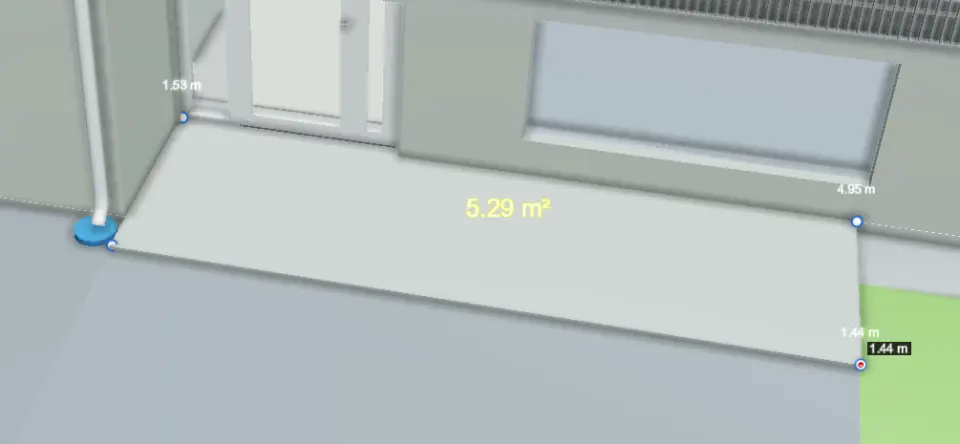

Area
Area measures the area of user clicked closed polyline and shows the total area in middle of the area. It also shows each polyline segment length next to endpoint of each segment.
